Q-DEV

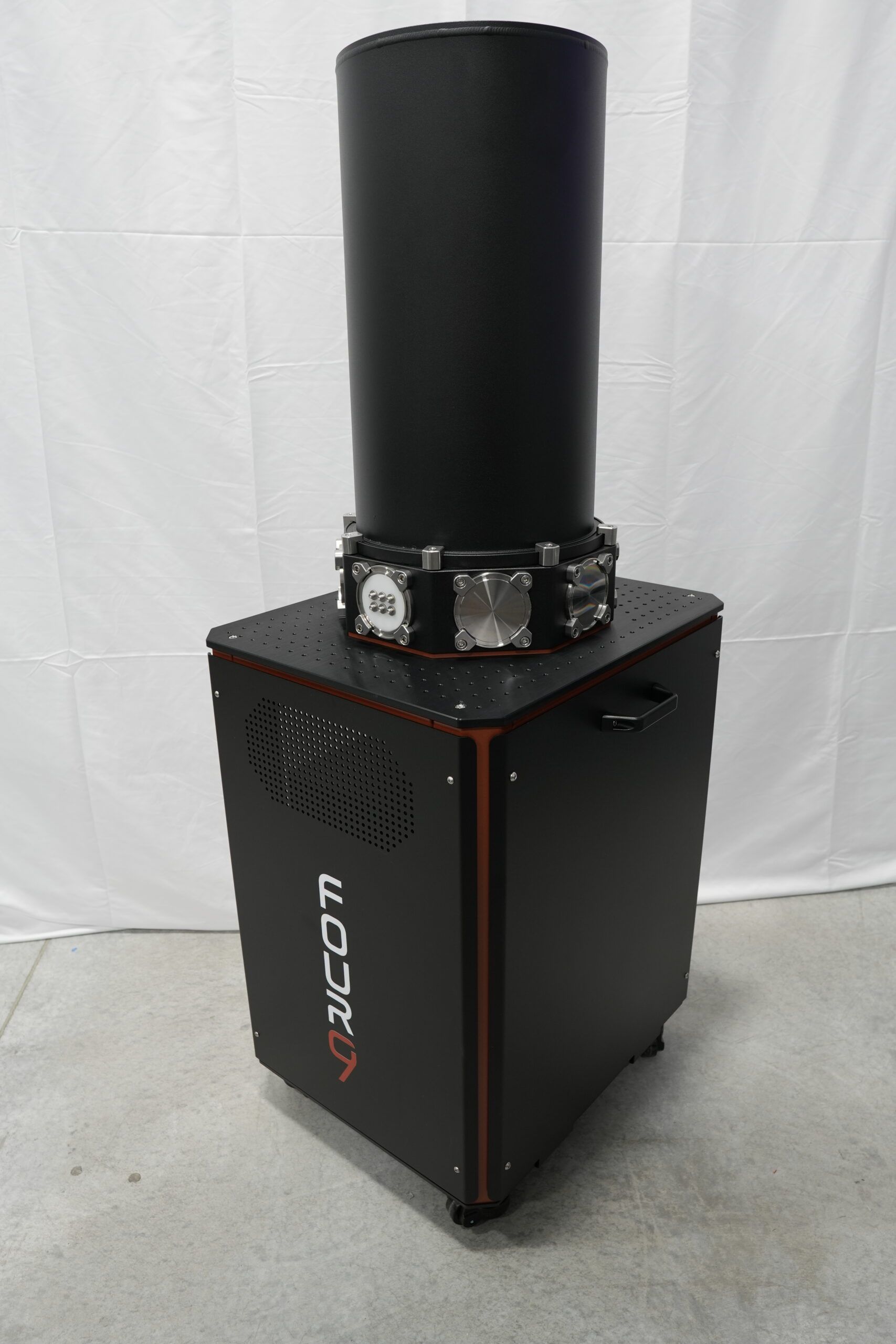

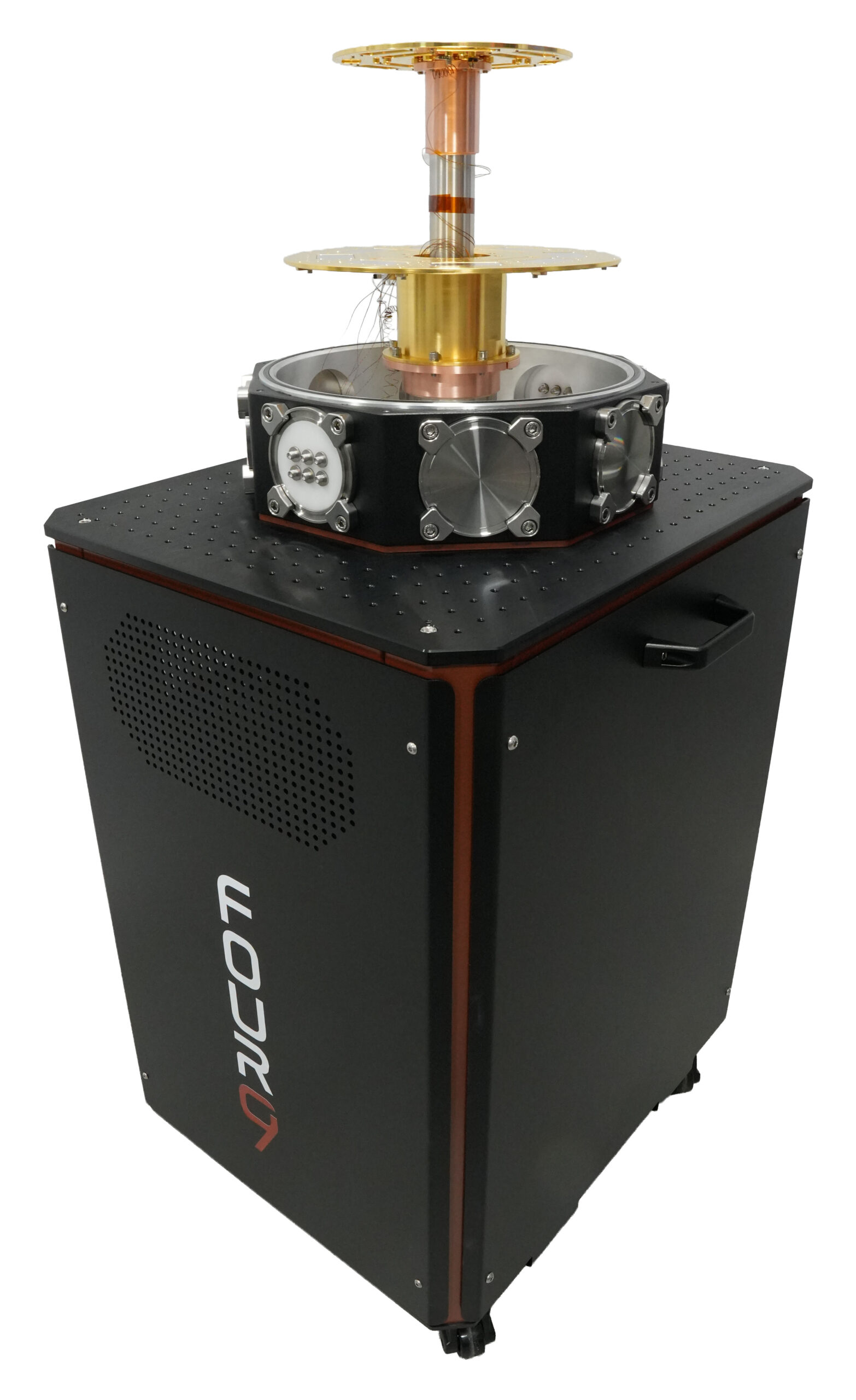

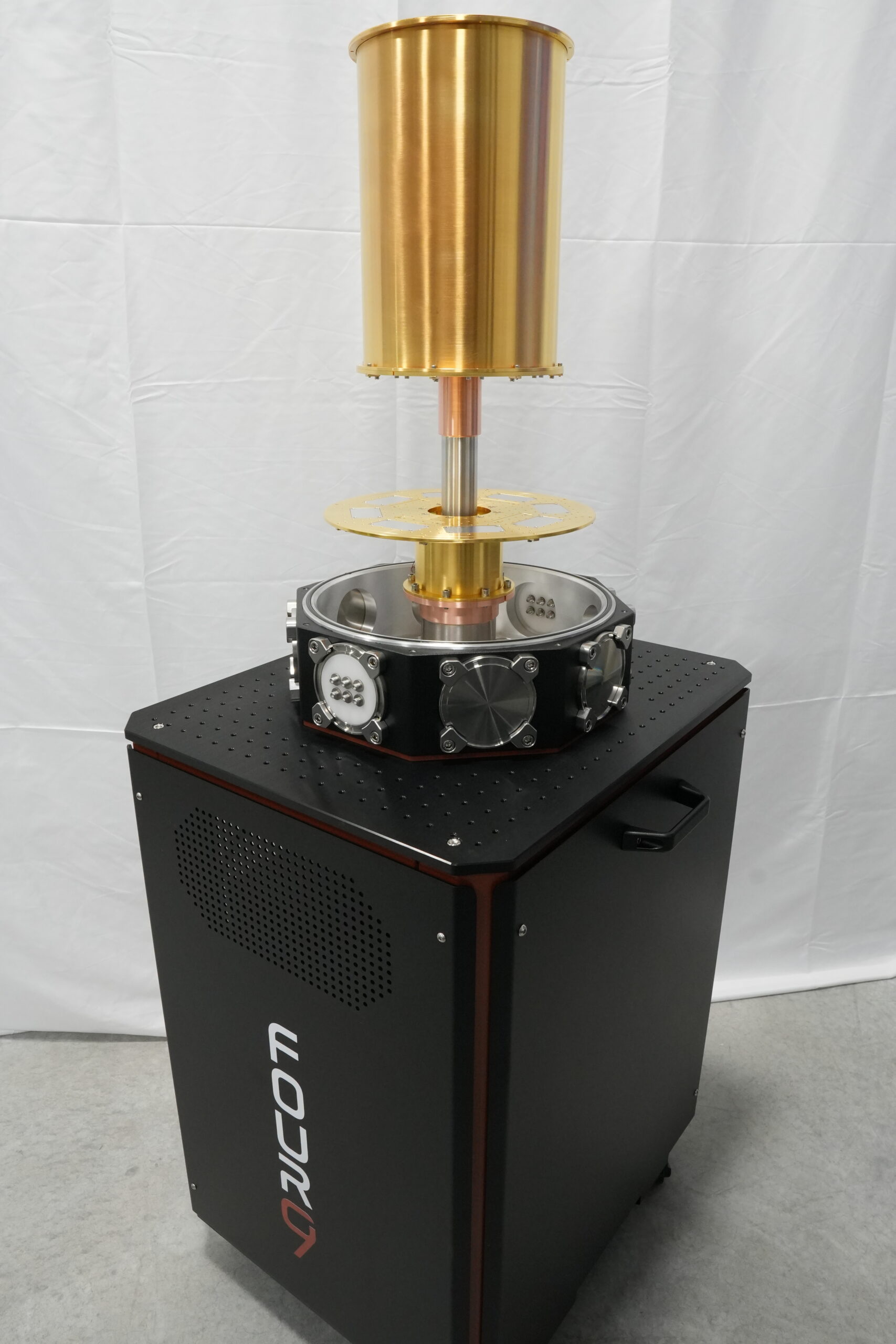

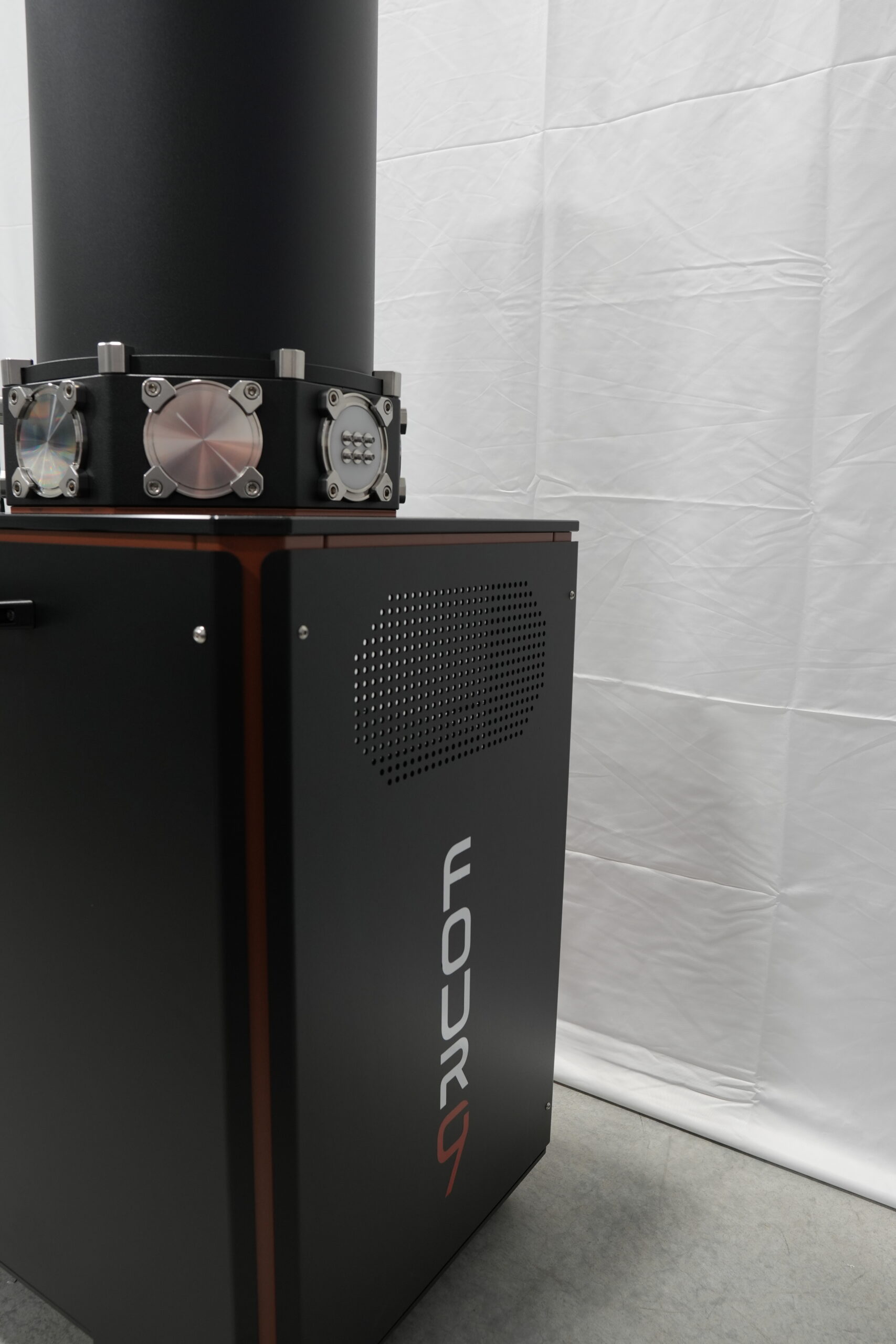

The Q-DEV is designed as a low cost, tabletop cryostat system for electrical research, rapid pre-testing of dilution refrigerator samples, or for educational purposes. It can be configured with a variety of electrical interfaces. The high-volume sample chamber combined with the powerful cooling capabilities make this an experimental workhorse, ready for your next big project!

Contact Us

Q-DEV Features

  • High 4K Cooling Power Operation
  • Rapid Cooldown & Turnaround
  • Pre-Qualification Platform for mK testing
  • Configurable for High-Density RD and DC I/O
  • Built for relieving Quantum Development and Device Testing Bottlenecks
  • Engineered for maximum flexibility, deployability, and dependability.

Technical Data and Specs

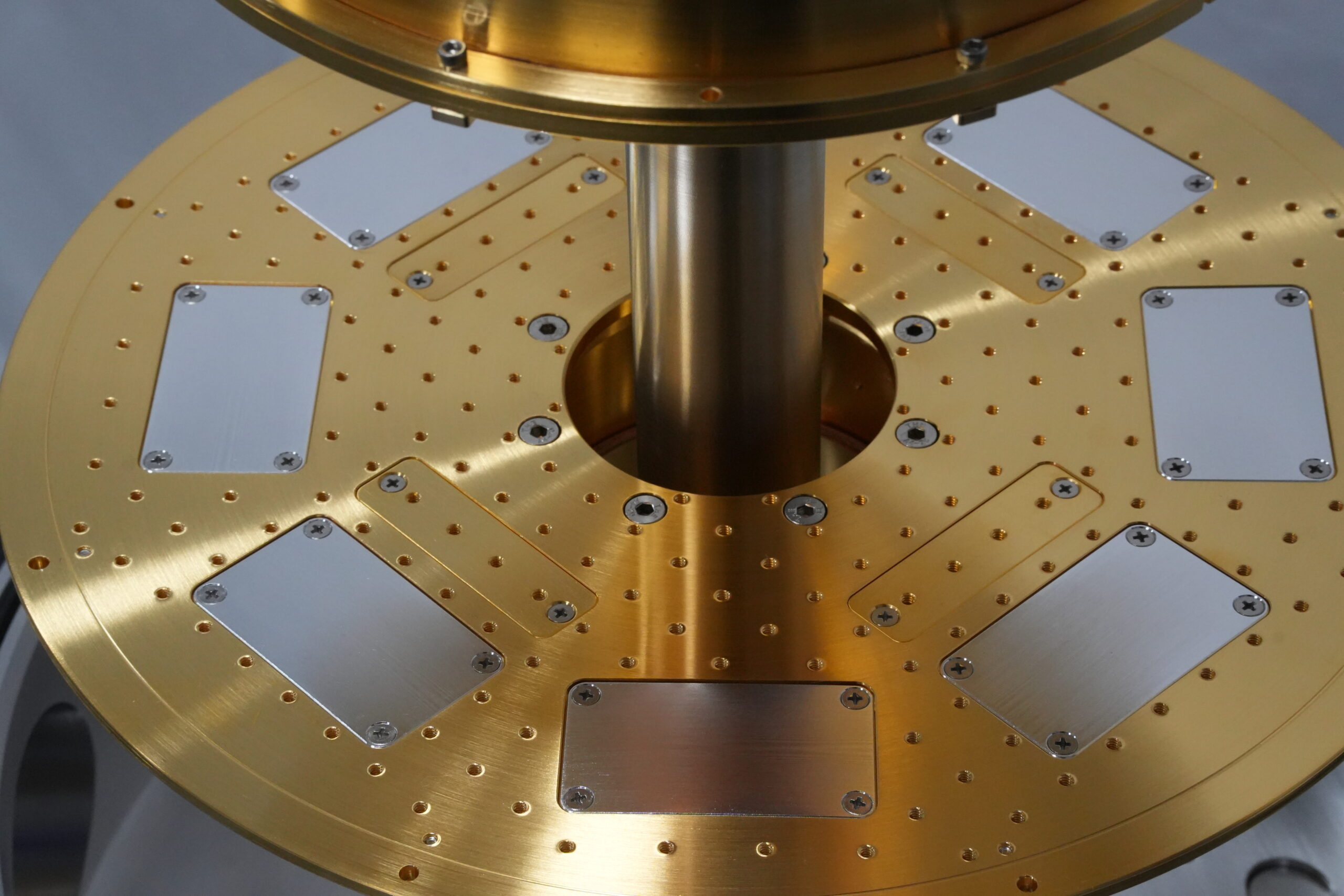

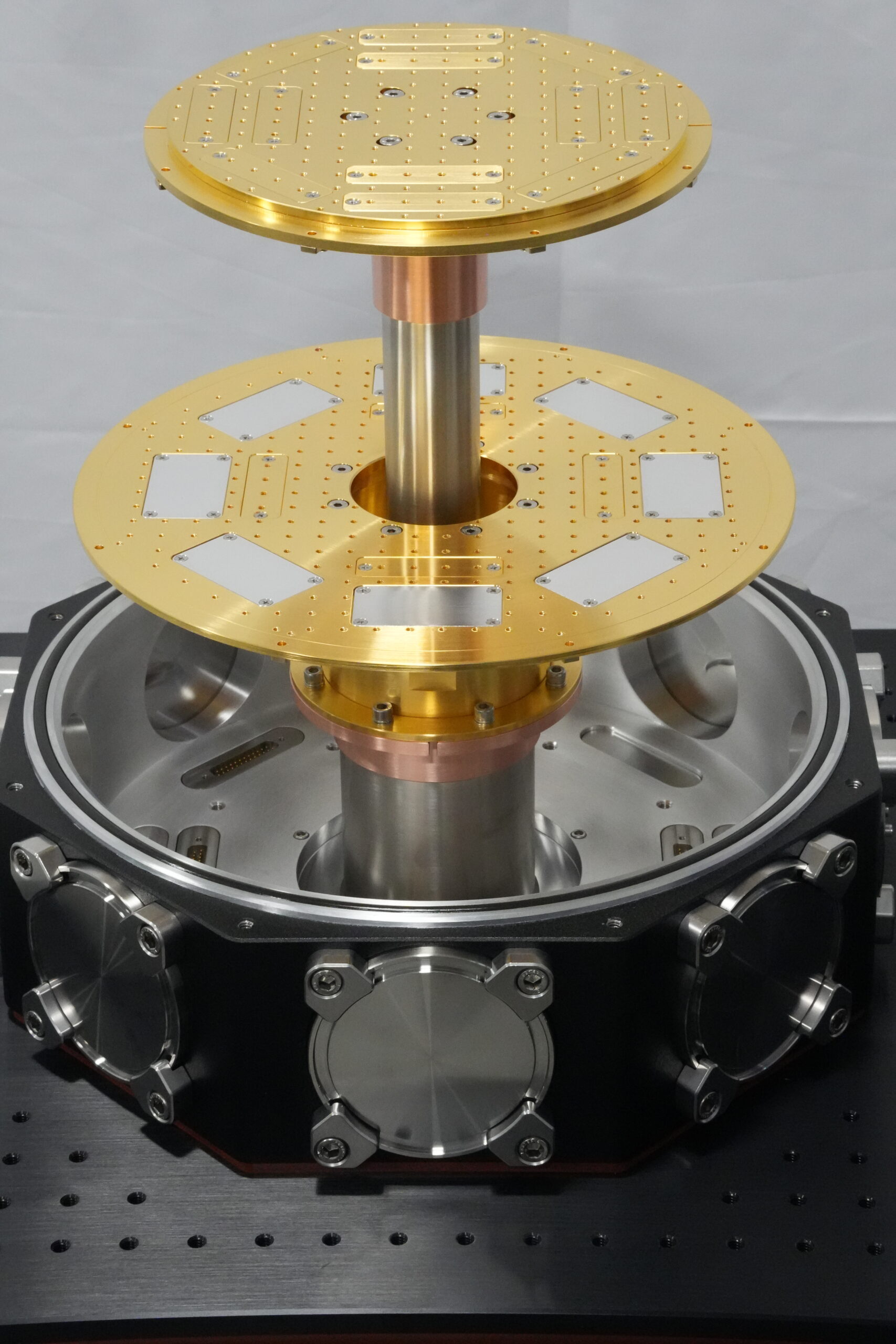

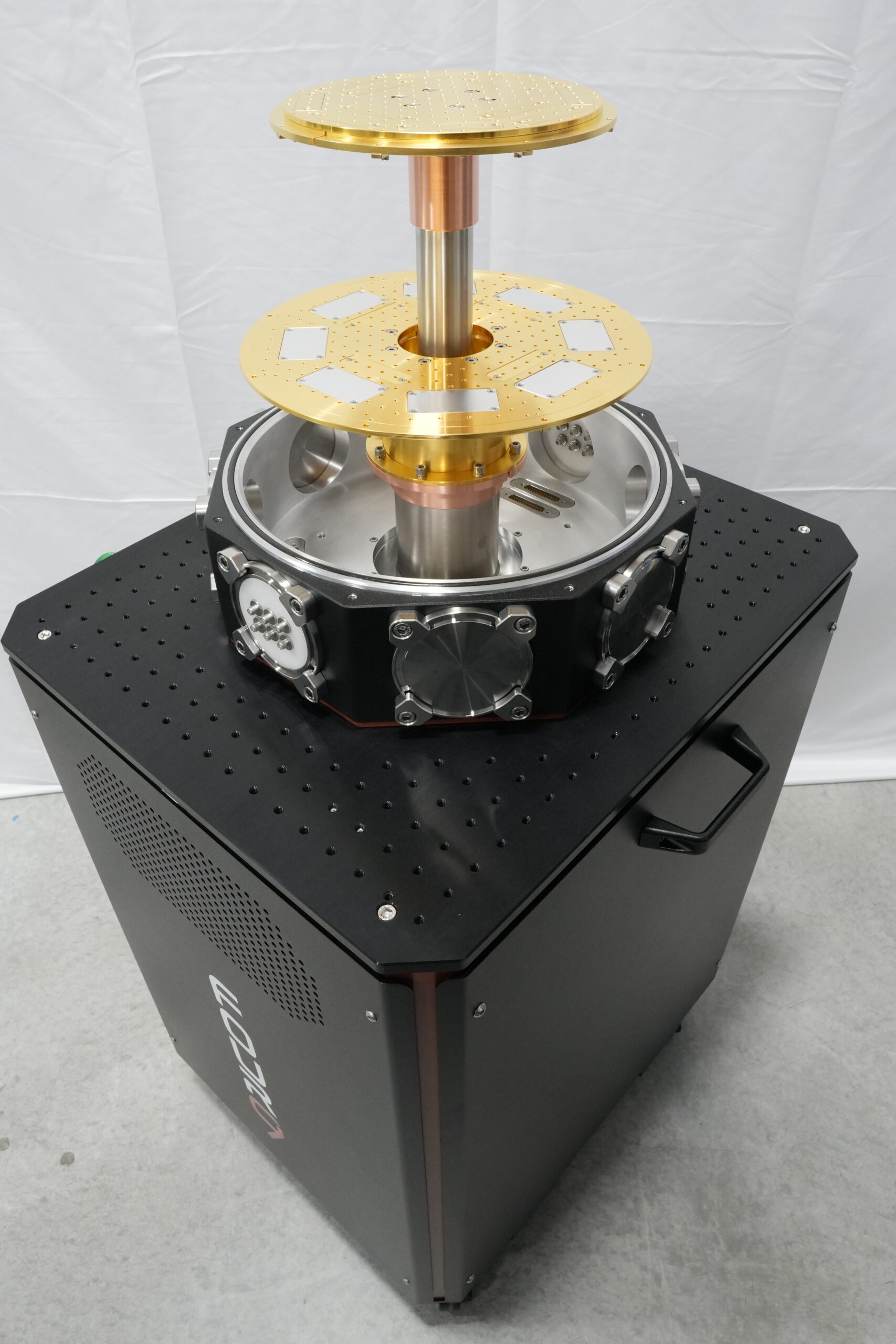

  • Ø200mm, Ø260mm 4K cold plate diameter
  • 100mm, 200mm, and 300mm chamber heights available
  • 2 + 4 Temperature control channels with Remote Python API

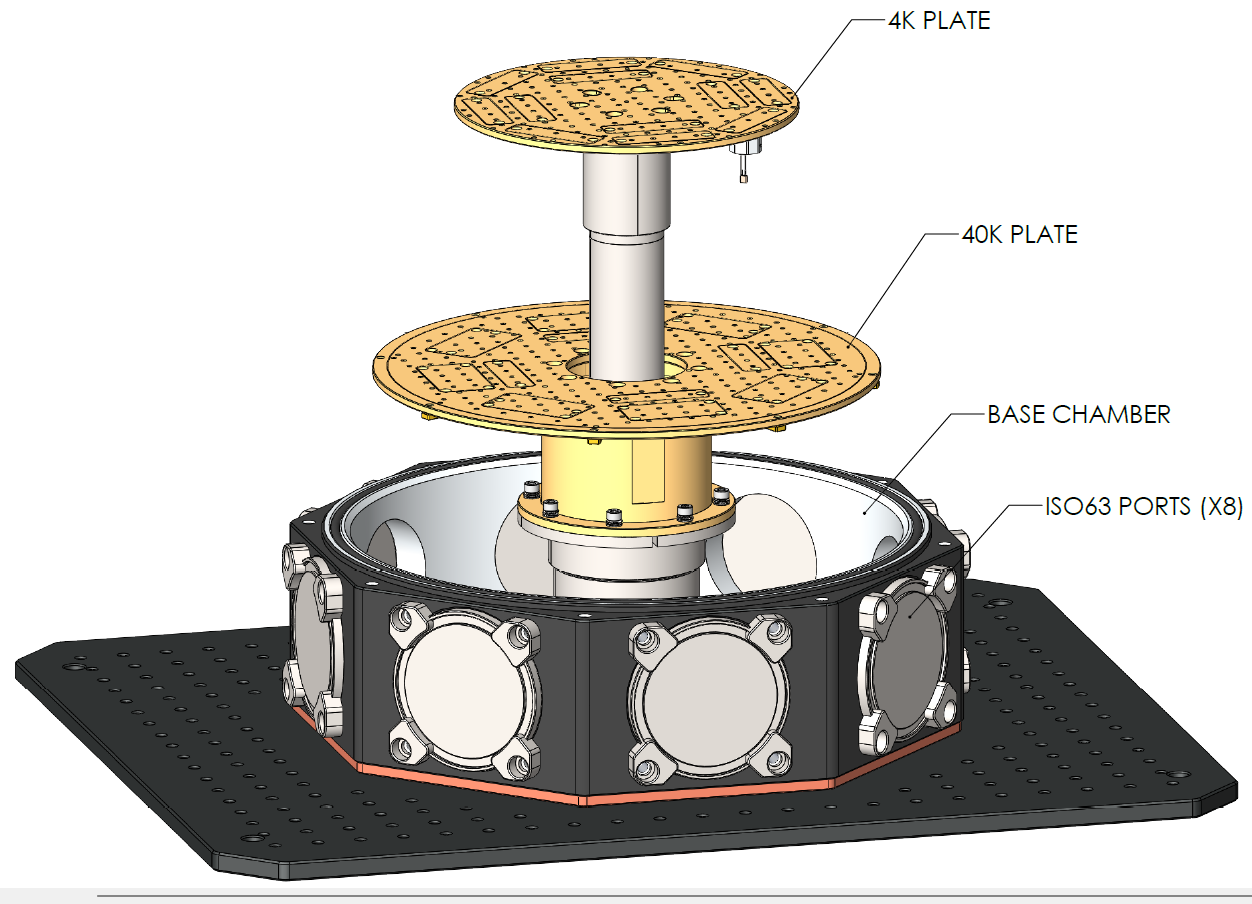

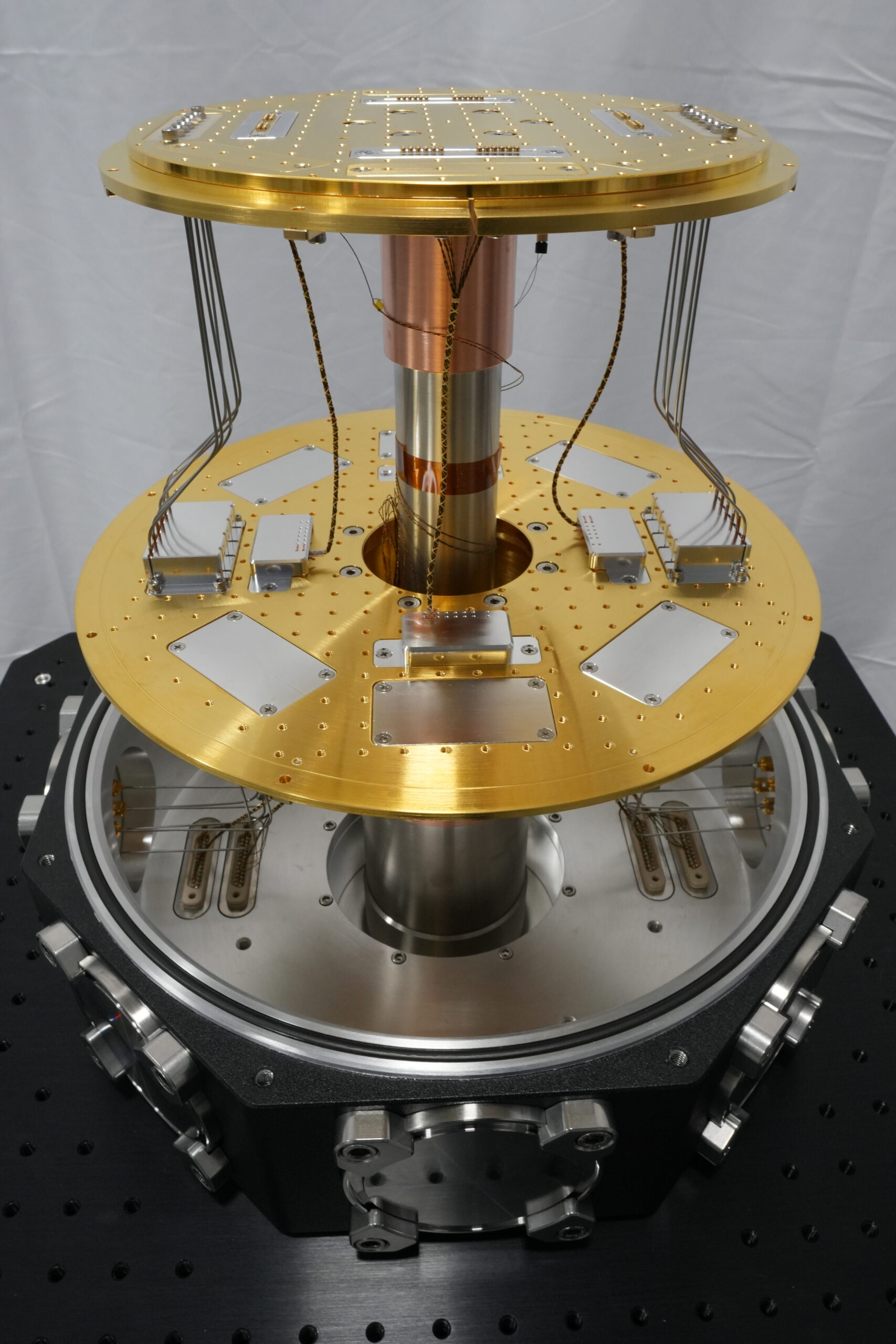

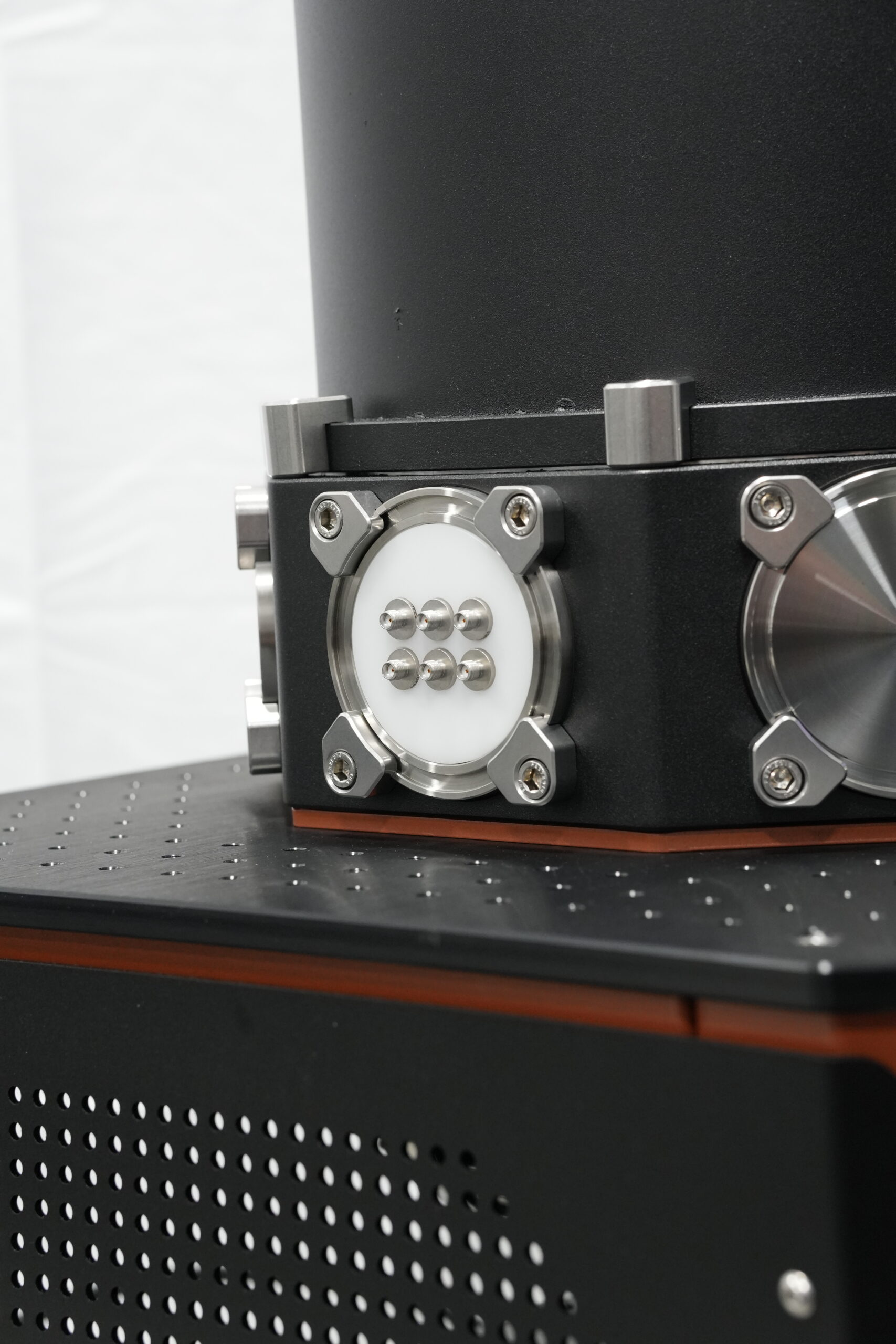

  • ISO63 x 8 Configurable feedthrough ports with 12x @ 4K, 12x @ 40K Configurable Cryo I/O Panels

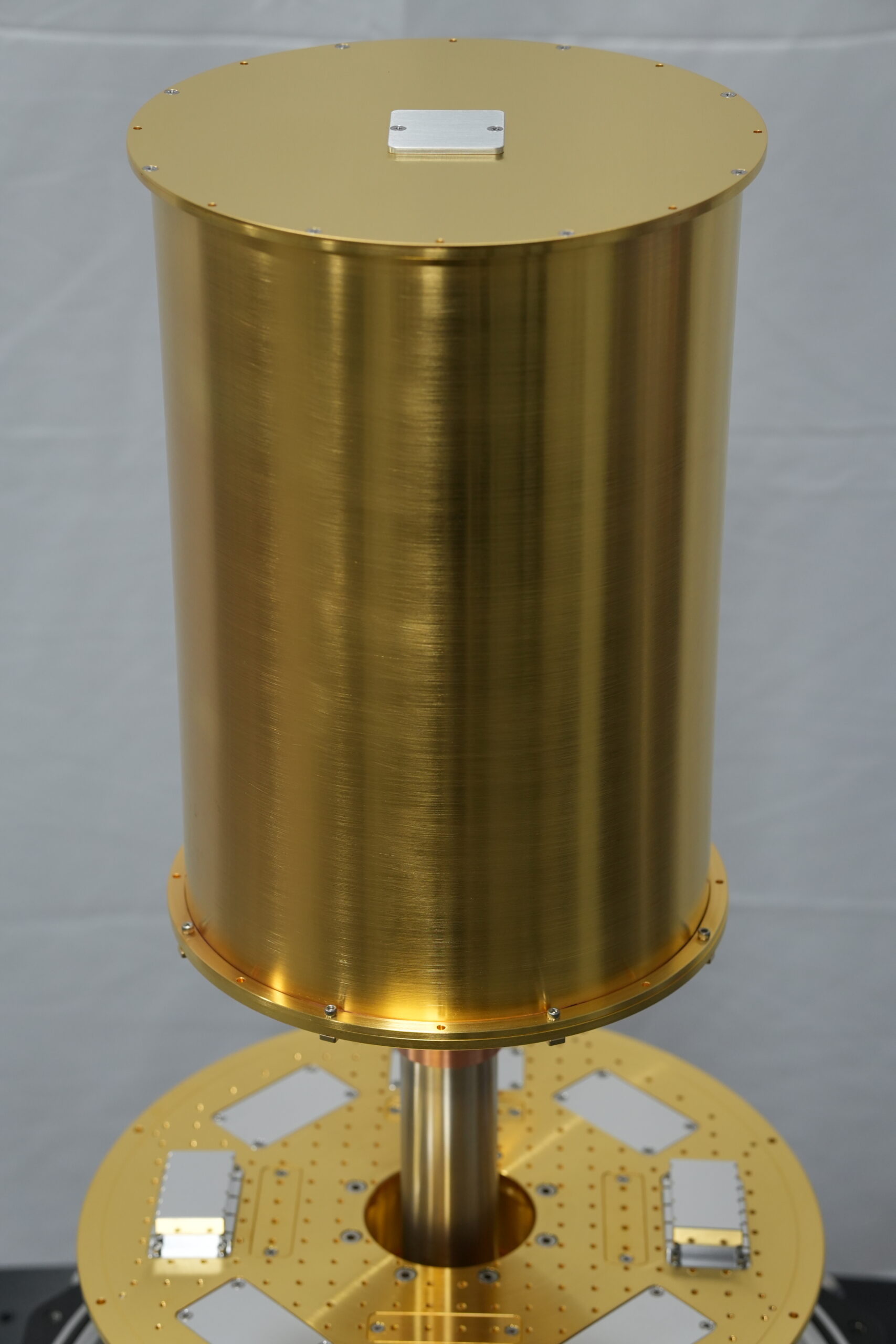

  • Specialty Options ranging from 1K, <1K Inserts – Single Shot, Continuous Magnetic Field (Single Axis, Vector) 4K Shielding, Magnetic Shielding, and Thermal Damping

Models:

Q-DEV 1

      • <3.0K Base Temperature
      • 1W at 4.2K Cooling Power
      • 90min Cooldown Time
      • 100min Warmup Time

Q-DEV 2

      • <3.0K Base Temperature
      • 2W at 4.5K Cooling Power
      • 70min Cooldown Time
      • 100min Warmup Time
