Vector Magnet
Vector Magnet Features

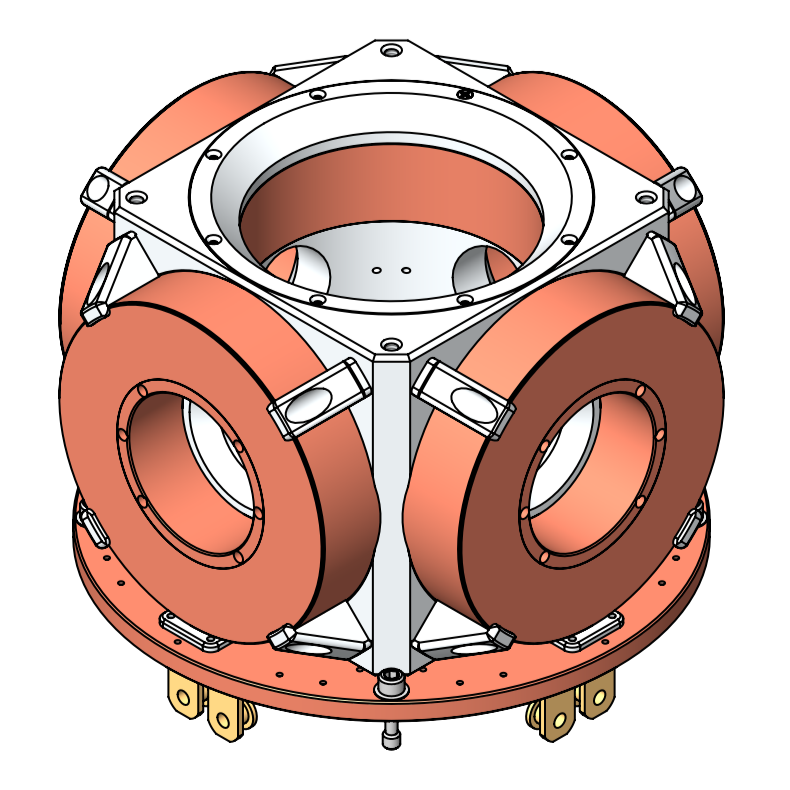

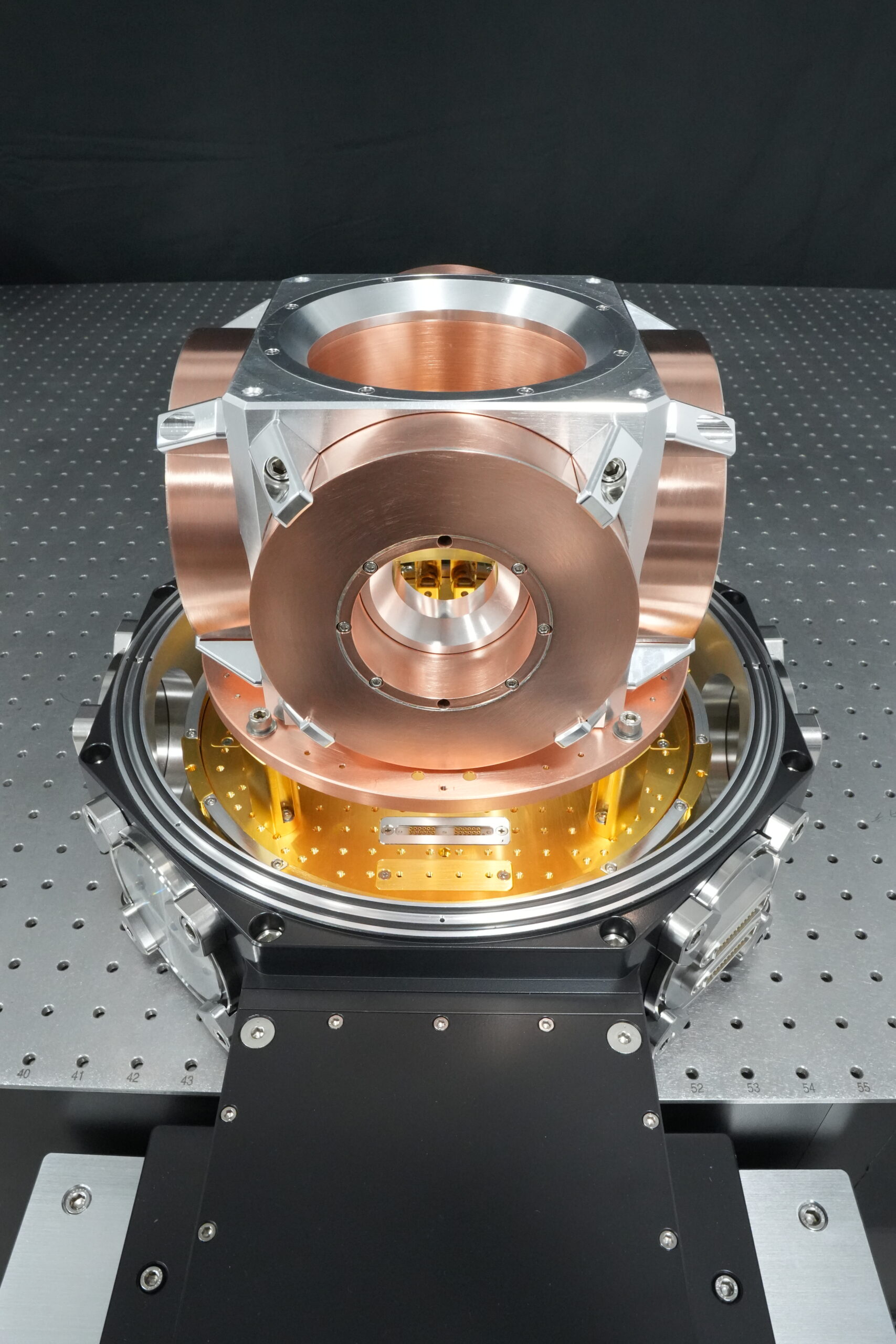

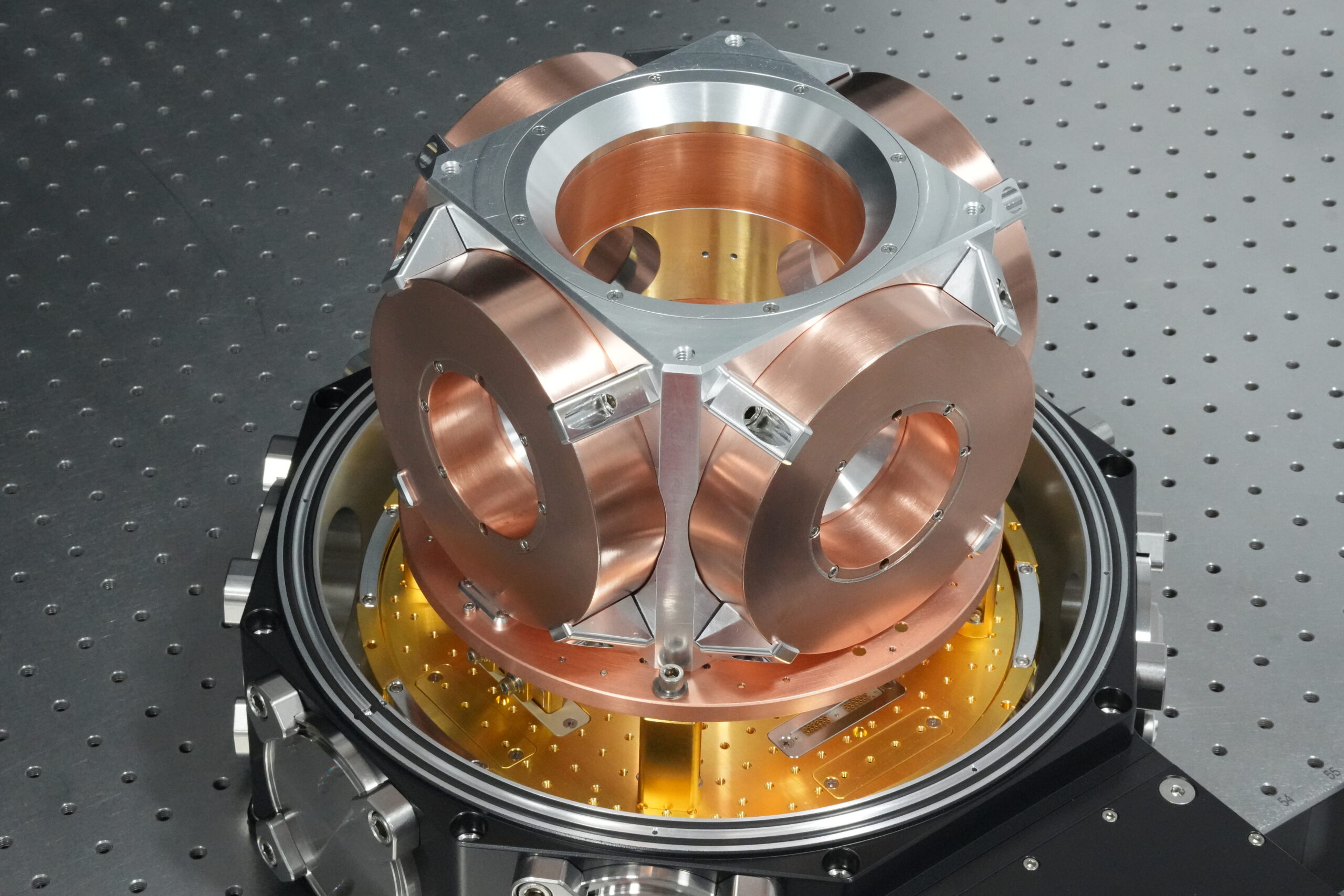

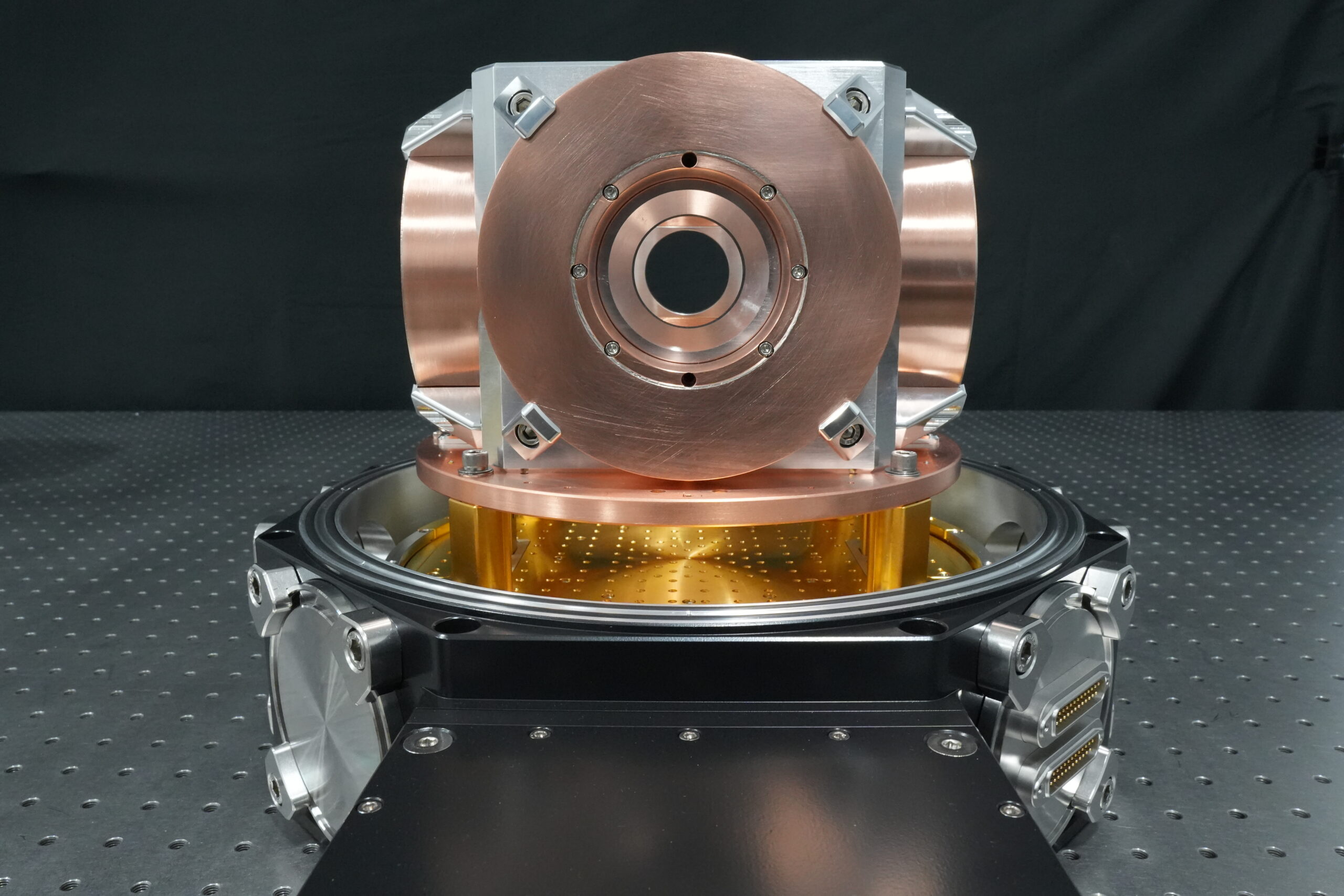

Engineered and built in-house, our 3-Axis Vector Magnet delivers powerful, precise magnetic field control in a compact and versatile platform. Designed for advanced research and experimental environments, this powerhouse magnet provides a fully pointable ±1 Tesla 3D magnetic field, enabling researchers to direct magnetic fields in virtually any orientation without repositioning the sample.
With its large Ø110 mm bore and generous optical access, the system supports a wide range of experimental setups including optical measurements, materials characterization, and precision physics applications. The multi-axis field control allows users to create and manipulate magnetic field vectors with exceptional accuracy, opening new possibilities for experiments that require dynamic field orientation.

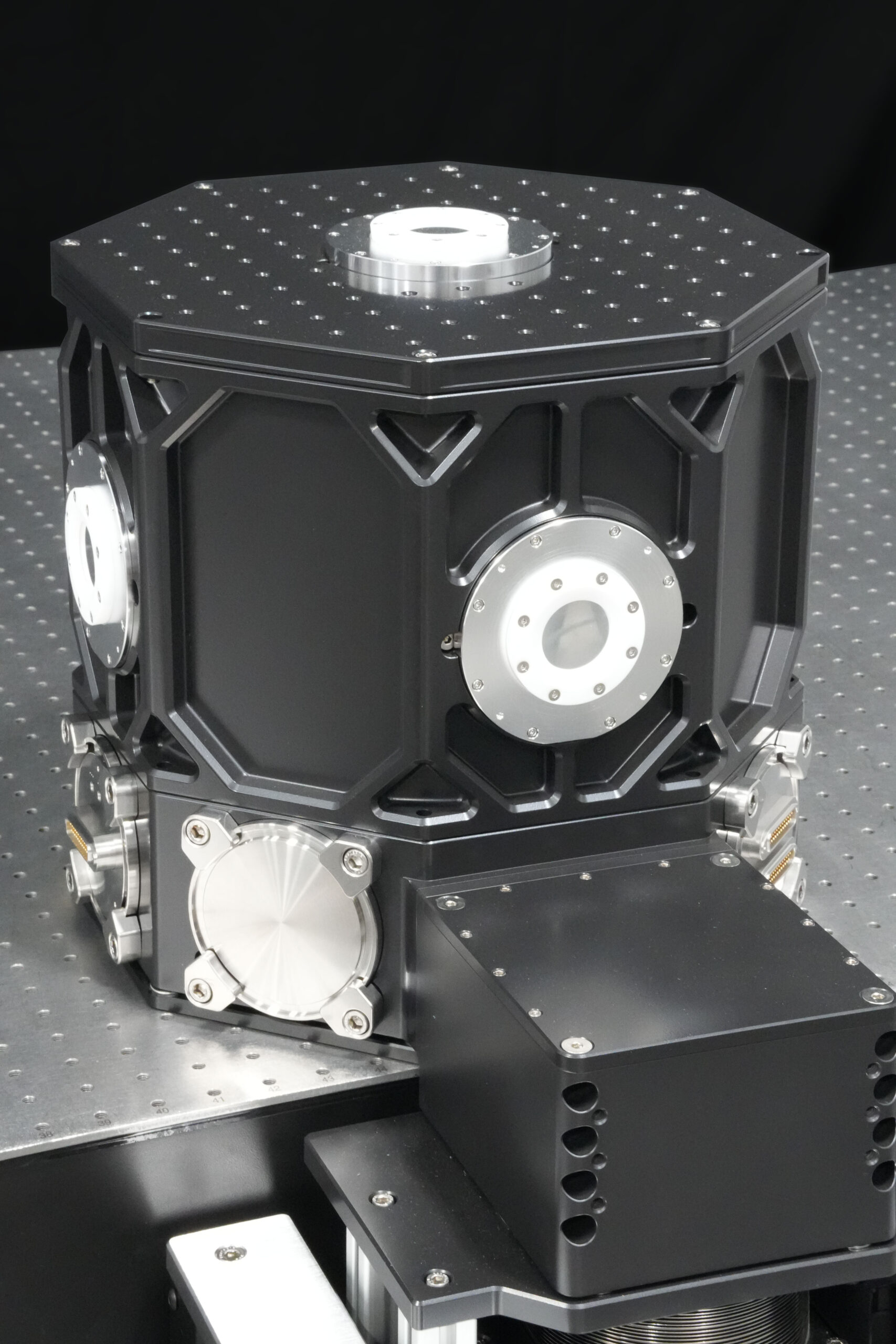

The vector magnet can also be integrated into Magnet-Ready systems, allowing researchers to seamlessly expand existing platforms with advanced vector field capability while maintaining compatibility with established experimental infrastructure.
Whether your research demands high-field strength, flexible geometry, or seamless optical integration, this vector magnet provides the performance and adaptability needed to push experimental boundaries.
No Limits. Any Direction.
Technical Data and Specs
-
3-Axis Vector Field Control: Generate a fully pointable 3D magnetic field up to ±1 Tesla for precise directional control.
-

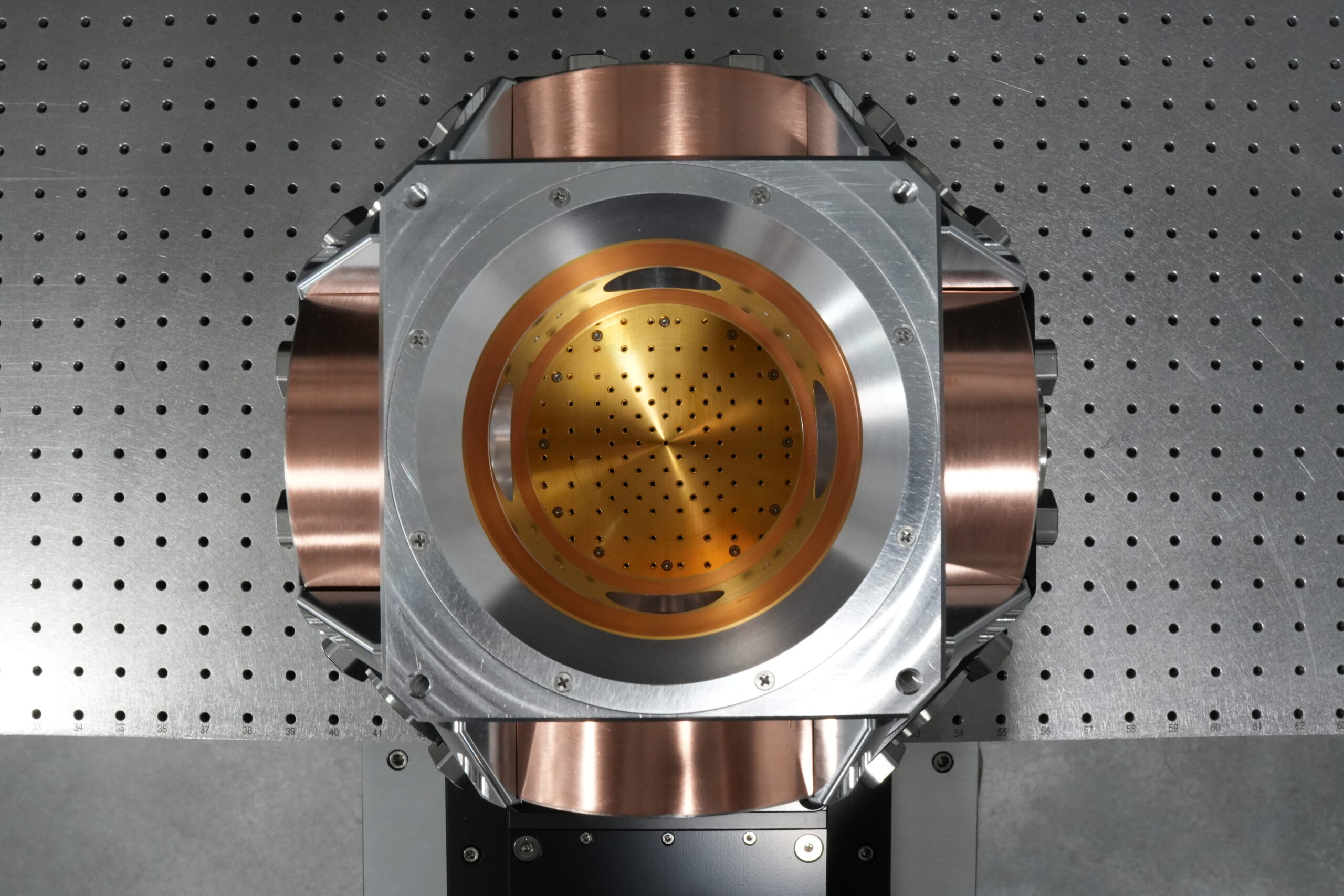

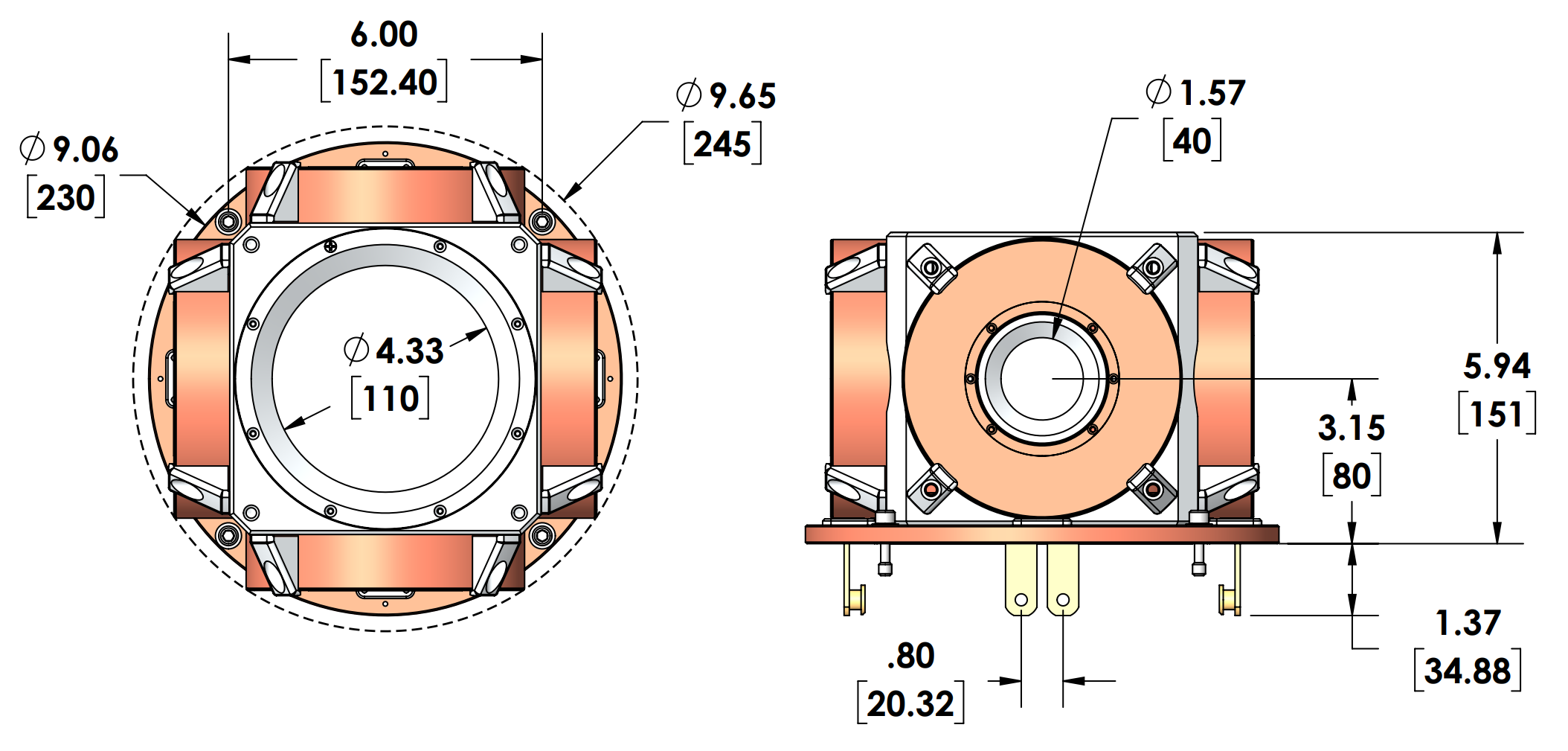

Large Experimental Bore: A Ø110 mm bore provides ample space for instrumentation, samples, and optical paths.
-

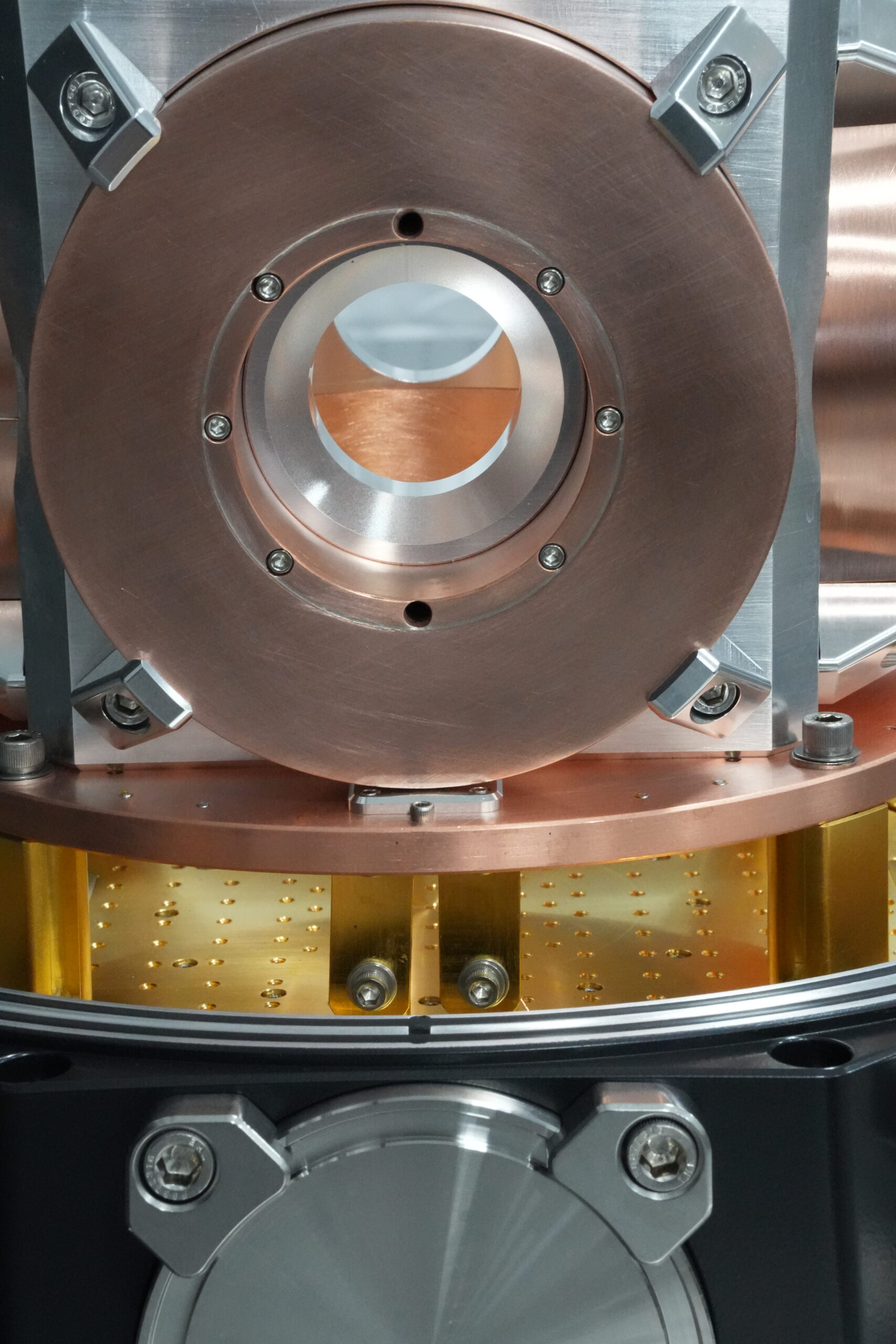

Integrated Optical Access: top, bottom, and side optical openings of Ø110 mm with Ø40 mm side ports enable flexible optical and imaging configurations.
-
High Field Strength: Powerful field generation with ±10,000 Gauss (±1 Tesla) capability across all axes.
-
In-House Engineering: Designed and manufactured internally for superior performance, reliability, and customization potential.
